Choosing the right cables creates a reliable, high-performing wired security camera setup. The type of cable you select directly impacts the quality of your video feed, your connection's stability, and your system's overall security.

Whether you're working with Cat 6 wiring, coaxial connectors, or a mix of both, understanding the different options and their applications can help you make an informed decision. We explore the various cables available for wired security camera systems, compare their benefits, and discuss choosing the best setup for your needs.

Understanding the Basics of Wired Security Camera Systems

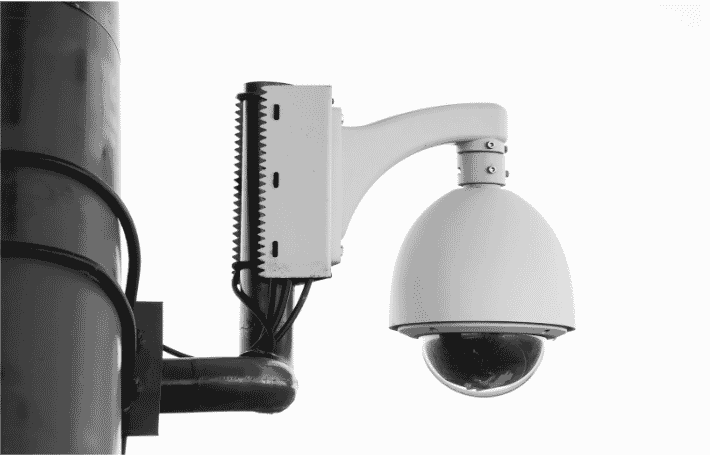

A wired security camera system typically consists of several key components: cameras, a digital video recorder (DVR) or network video recorder (NVR), and the cables that connect these devices. The choice of cables matters because they transmit the video signal and, in some cases, power to the cameras. Ensuring a stable and reliable connection between these components helps maintain continuous surveillance coverage.

Common cable types used in wired security camera systems include Cat 6 and coaxial cables. Both types are famous for different reasons, each offering unique benefits depending on the facility's requirements.

Cat 6 cables are primarily utilized in IP-based security systems, in which cameras are connected to a network and send video data via the Internet. These camera wires can also provide power through a feature known as Power over Ethernet (PoE), simplifying the setup by eliminating the need for separate power cables.

Coaxial cables, on the other hand, are typically used in analog security systems. They transmit unprocessed video signals from cameras to the DVR. A common variant, the RG59 Siamese cable, combines coaxial and power cables into a single casing, making it easier to install and manage.Choosing the right cable type allows a wired CCTV camera system to be reliable and meet the setup's specific needs.

Comparing Cat 6 and Coaxial Cables for Security Systems

When selecting cables for a security system, it's essential to understand the differences between Cat 6 and coaxial wires and how each type can impact your security setup.

Cat 6 Cable Guide

Cat 6 cables are known for their high data transmission speeds and reliability in network environments. They can support Gigabit Ethernet speeds and transmit data up to 10 Gbps over short distances. This makes them ideal for IP-based security systems, where multiple high-definition cameras are connected to a network.

Pros:

• High Data Transmission Speed: Suitable for high-definition video feeds and fast data transfer.
• Power Over Ethernet (PoE): Can transmit both power and data, reducing the need for additional power lines.
• Less Interference: Better at reducing crosstalk and interference than coaxial cables, especially in environments with multiple wires.

Cons:

• Distance Limitations: Effective up to 100 meters (328 feet) without a signal booster, which may limit camera placement options.
• Requires More Advanced Network Setup: Cat 6 cables are part of IP systems that require networking knowledge for setup and maintenance.

Coaxial Cable Guide

Coaxial cables, like the RG59 Siamese cable, are designed for analog camera systems and have been used in security installations for decades. They are reliable and have strong connections, making them ideal for sending analog video signals over great distances.

Pros:

• Simplicity and Reliability: Easy to install and maintain with fewer components involved.
• More excellent Distance Capability: Can transmit video signals over longer distances without significant signal loss.
• Shielding: Built-in shielding reduces electromagnetic interference, making it ideal for environments with potential electrical interference.

Cons:

• Lower Data Transmission Speed: Not suitable for high-definition video feeds or large amounts of data.
• No Built-in Power Transmission: Separate power cables are required unless using a Siamese cable configuration.

When deciding between Cat 6 and coaxial cables, consider factors like the distance between the cameras and recording devices, the quality of the video feed required, and the complexity of the installation.

Importance of Quality Connectors in Security Camera Systems

Attaching coaxial cable connectors is crucial for maintaining signal integrity and ensuring the overall performance of security camera systems. Using poor-quality connectors during installation can result in signal loss, video degradation, and potential downtime in surveillance coverage.

Common Connectors for Security Systems

• RJ45 Connectors: These are used with Cat 6 cables in IP camera setups. The RJ45 connector is a standard Ethernet connector that provides a reliable data and power transmission connection. Ensuring a good connection with high-quality RJ45 connectors is essential for maintaining a stable IP camera network.
• BNC Connectors: Widely used with coaxial cables in analog security systems, BNC (Bayonet Neill-Concelman) connectors provide a secure and stable connection for transmitting video signals. The twist-lock mechanism allows for a firm attachment, reducing the risk of accidental disconnection.
• F-Type and TNC Connectors are also used with coaxial cables but are less common in security camera systems. They offer solid and weatherproof connections, making them suitable for outdoor installations.

High-quality connectors help prevent signal degradation and maintain the overall integrity of your security system.

Ensuring a Reliable Security Camera Setup

To maintain a reliable wired security camera system, it's essential to choose the right cables and connectors and consider factors that could affect system performance.

• Avoiding Signal Loss: Signal loss can occur over long cable runs or if the cable quality is subpar. Select high-quality Cat 6 or coaxial cables designed for your setup's specific needs to prevent this. Proper shielding and adequate cable thickness are also essential in minimizing signal degradation.
• Reducing Interference: Interference can disrupt video signals and affect the clarity of surveillance footage. Shielded cables, such as Cat 6 or RG59 Siamese coaxial cables, can help prevent radio frequency interference (RFI) and electromagnetic interference (EMI).
• Preventing Physical Damage: Cables and connectors should be durable and weather-resistant, especially outdoors. Using cables with protective jackets and connectors for outdoor use can help with long-term reliability.

By carefully selecting the appropriate cables and connectors and considering the factors that affect system performance, you can ensure your wired security camera system remains reliable and effective.

Getting Your Security Camera System Right With Us

Choosing the suitable cable for your wired security camera system helps provide reliable performance and optimal security coverage. Choosing the correct type of wiring for your needs is essential, whether you use coaxial cables for a traditional analog setup or Cat 6 wiring for a high-speed IP camera network.

Consider exploring our offerings for high-quality, reliable cabling solutions. Our wide range of low-voltage cables, including specialized options for security systems, allows you to find the right product for your needs. Contact us today for more information and to identify the ideal cabling solution for your security setup.

Choosing the right cables and connectors can enhance your security camera system and ensure it provides the protection and peace of mind you need.
