Why Shielded and Composite Designs Are Key to Effective Security Cable Solutions

Security networks perform best when the physical layer is quiet, predictable, and easy to manage. In commercial access control and surveillance, these typically come down to two design choices that carry significant weight: shielding and composite construction. This is a look at why these choices matter, how they support modern protocols like OSDP and RS-485, the role plenum ratings and environmental protection play, and where thoughtful selection pays dividends in terms of reliability, compliance, and long-term serviceability.

Why cable design matters in modern security systems

Commercial facilities depend on uninterrupted credentialing, alarm reporting, video verification, and system telemetry. Readers, controllers, door hardware, cameras, intercoms, and management servers all exchange data that must arrive on time and without corruption. Shielding reduces the interference that would otherwise accompany those signals. Composite constructions combine power, control, and data conductors in a single jacket, which reduces clutter and makes pathways more organized.

Taken together, these choices lift the baseline performance of security cable solutions and support cleaner, more scalable systems. For deeper reference material, the Security & Access Control Resource Center provides category guidance and specifications.

Understanding security cable solutions in commercial environments

The phrase "security cable solutions" refers to purpose-built, low-voltage cables used for access control, intrusion detection, intercom, and related building systems. Key families include single-pair control lines for simple sensors, multi-conductor bundles for readers and locks, twisted pairs for data and serial links, and specialized coaxial or fiber optic cables for video backbones.

Within those families, shielding choices and composite layouts become the levers that influence noise immunity and pathway efficiency. Selecting intentionally within those categories protects signal integrity, simplifies documentation, and shortens future troubleshooting time.

How shielding enhances security system communication

Electromagnetic interference is common in commercial buildings, where mechanical equipment, LED drivers, VFDs, elevator motors, and dense IT racks all generate fields that can disturb low-voltage signaling. Shielding options generally fall into three patterns. Aluminum polyester foil provides full coverage against high-frequency interference and helps maintain pair balance. Tinned copper braid offers lower resistance and improved performance against lower-frequency fields, while also providing mechanical robustness. A combination of foil and braid gives broad-spectrum protection and a reliable path to ground.

In practice, bulk security-shielded wire placed near power feeds and lighting circuits exhibits fewer retries and cleaner waveforms than its unshielded equivalents. A 2-conductor shielded cable used for door position or request-to-exit lines resists induced transients that might otherwise cause nuisance alarms. Where multiple signaling needs converge at a door, a shielded OSDP composite cable can group the balanced data pair with additional conductors for power and auxiliary I/O, maintaining a tight, predictable geometry that rejects noise and simplifies routing.

Why OSDP and RS-485 communications benefit from shielded designs

OSDP and RS-485 both use differential signaling, which inherently rejects common-mode noise. Even so, shielding remains valuable because it reduces the amplitude of the signal that reaches the twisted pair in the first place. OSDP cable, built around a balanced, tightly twisted, shielded pair, maintains data integrity through long corridors and equipment rooms that would challenge unprotected links. RS-485 wire and cable with foil or foil-plus-braid provide a low-impedance return path for high-frequency components and limit radiated emissions that can couple into neighboring circuits.

Many facilities also carry serial control traffic for legacy devices. RS232 appears on elevator interfaces, DVRs, and some access panels. Although RS-232 is not a differential signal, shielding and a solid drain path reduce capacitive coupling and pulse spikes from adjacent loads. That translates into cleaner status polling and fewer unexplained dropouts during high activity windows, such as shift changes or event ingress.

Advantages of multi-conductor composite cables

Multi-conductor composite cables combine multiple conductor types under a single jacket. Common examples pair a shielded data pair for OSDP with power conductors for the reader and controller, or combine separate control pairs with a heavier gauge pair for lock power. This approach provides several practical gains.

First, fewer individual pulls mean less congestion in the conduit and a cleaner dressing inside panels. Second, a single part number covering an entire opening simplifies procurement and spares management. Third, pre-engineered geometry holds consistent lay lengths and shielding coverage from end to end, which supports predictable impedance and crosstalk performance. In large deployments, multi-conductor composite cables reduce time spent tracing runs, which lowers lifetime maintenance costs and shortens incident response when a device needs attention. These traits are why multi-conductor composite cables have become a default choice for many enterprise access control designs.

Plenum vs non-plenum choices in security cable applications

Air-handling spaces present distinct fire and smoke risks. Plenum-rated materials meet strict tests for flame spread and smoke generation, which protects occupants and supports code compliance. Plenum-rated security and access control cables are specified where return air paths and drop ceilings create shared air volumes. Riser and general-purpose ratings have their place in vertical shafts and protected pathways. Matching jacket ratings to the space type is both a safety practice and a documentation requirement.

Project teams often ask about performance differences. The signal characteristics largely depend on the conductor geometry, dielectric, and shielding, rather than the jacket rating. The practical distinction is compliance. Selecting the correct rating helps pass inspection without rework and protects continuity of operations during handover. It also creates consistency for facility managers who inherit the system, as they rely on clear labels that map directly to code-appropriate materials.

Weatherproof and outdoor-ready options for harsh environments

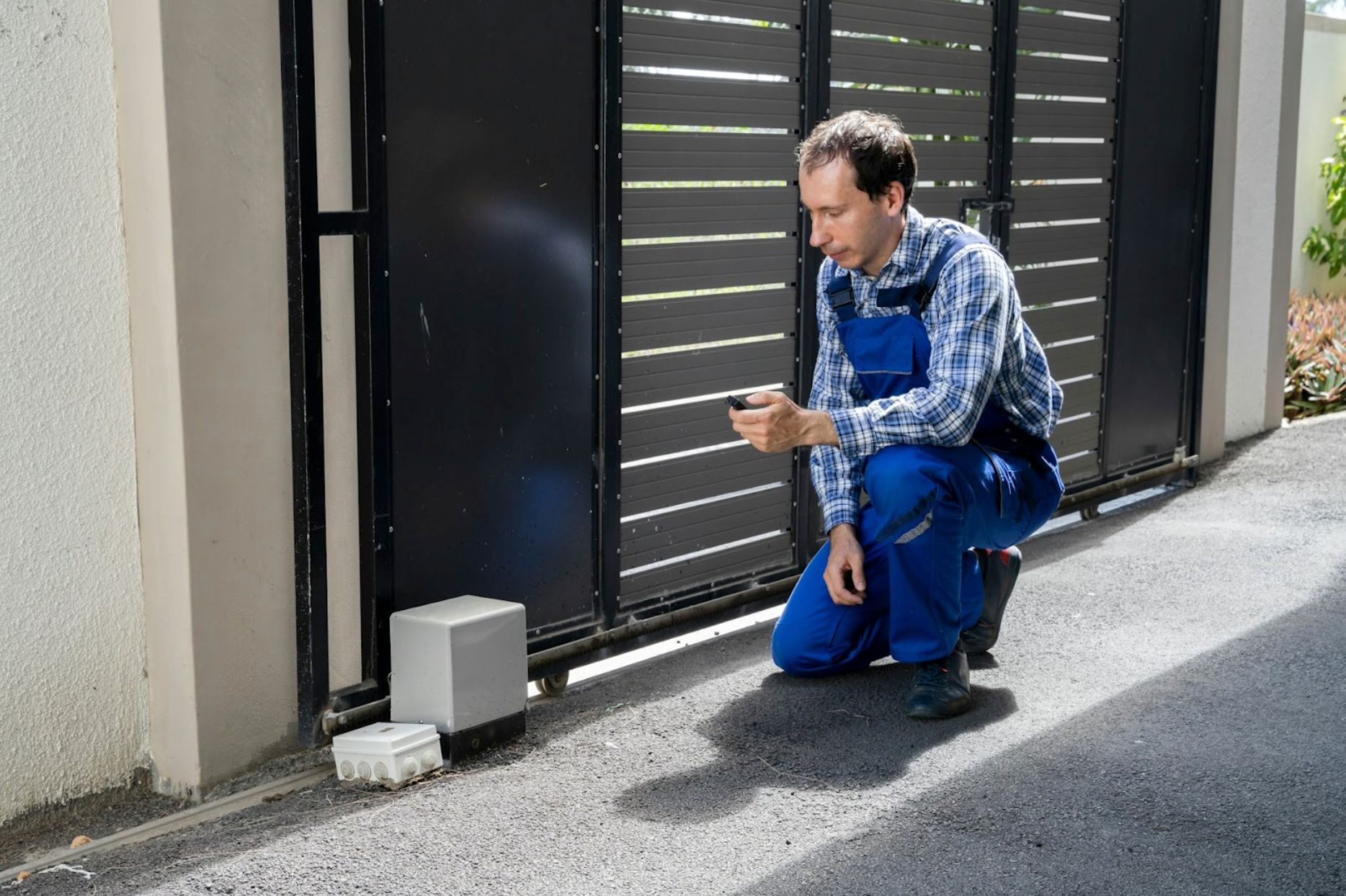

Perimeter control, gates, parking access, and exposed conduits pose challenges to cable constructions. Water ingress, UV exposure, and temperature cycling can degrade jackets, and wicking can lead to intermittent faults long after a project closes. Weatherproof access control wiring counters those threats with sunlight-resistant jackets, water-blocking elements, and materials that remain flexible at low temperatures.

When those characteristics combine with shielding and composite layouts, the result is a cable that carries reliable data and power while resisting the environmental stress that often causes nuisance service calls.

Practical selection guidance

Good outcomes begin with a short list of functional questions. What protocol will travel on each pair, and how sensitive is it to impedance variation or noise coupling? What current must the power conductors carry and over what distance? What spaces will the pathway traverse, and what rating does each segment require? Is there a convenience advantage to combining conductors under one jacket, and will that reduce panel clutter or confusion during audits?

From there, align features to needs. For balanced data, pick twisted pairs with consistent lay and suitable shielding. For lock power, choose an appropriate gauge to hold voltage within the device’s tolerance. Where door hardware, sensors, and readers converge, consider a composite that groups everything cleanly. Document the choices and label them clearly so future teams can service the system without guesswork. This mindset enhances reliability, safeguards budgets, and facilitates a seamless acceptance process.

Leading in advanced security cable solutions

Commercial security buyers value consistency, clarity, and supply reliability. The focus is on high-performance shielding options, stable conductor geometry, and jacket ratings that align with common code scenarios. The portfolio includes dedicated constructions for balanced serial data, power delivery, and bundled composites for openings and panels. Nationwide availability and predictable part families help standardize material lists across campuses and multi-site rollouts.

Putting it together across a commercial facility

Consider a typical enterprise door. A modern reader speaks OSDP over a balanced, shielded pair back to an intelligent controller. The strike or maglock receives power on separate conductors sized for the run length and load. A request-to-exit device reports its state on a discrete pair, and a door position switch monitors the status for compliance and alarms. A composite cable bundles these conductors so the opening uses one route and one label.

Shielding on the data pair rejects elevator noise and nearby LED drivers. Plenum rating applies where the route crosses air handling spaces, while riser rating covers vertical shafts. Outdoors, weatherproof construction protects the same group of signals from water and sunlight. The system operator sees a door that responds instantly and accurately reports its status. The maintenance team sees a tidy label and a single part number that matches documentation. The outcome looks simple because the design, materials, and documentation support that simplicity.

Final Thoughts

Security performance depends on the character of the physical layer that carries signals and power. Shielding limits interference before it reaches the conductors that matter. Composite construction reduces clutter and raises clarity across panels, pathways, and documentation. Correct jacket ratings support compliance without drama. Environmental protections maintain stable links under extreme sun, water, and temperature conditions. Together, these elements define effective security cable solutions that scale, integrate, and operate with fewer surprises.

For reference materials, product categories, and planning insights, explore the Security & Access Control Resource Center. For availability, specifications, or quote assistance, contact our team. Thoughtful selection at the cable level supports dependable credentials, accurate alarms, clean event logs, and faster service when changes arrive.
