Why Burial OSDP Cable is Critical for Reliable Outdoor Access Control Systems

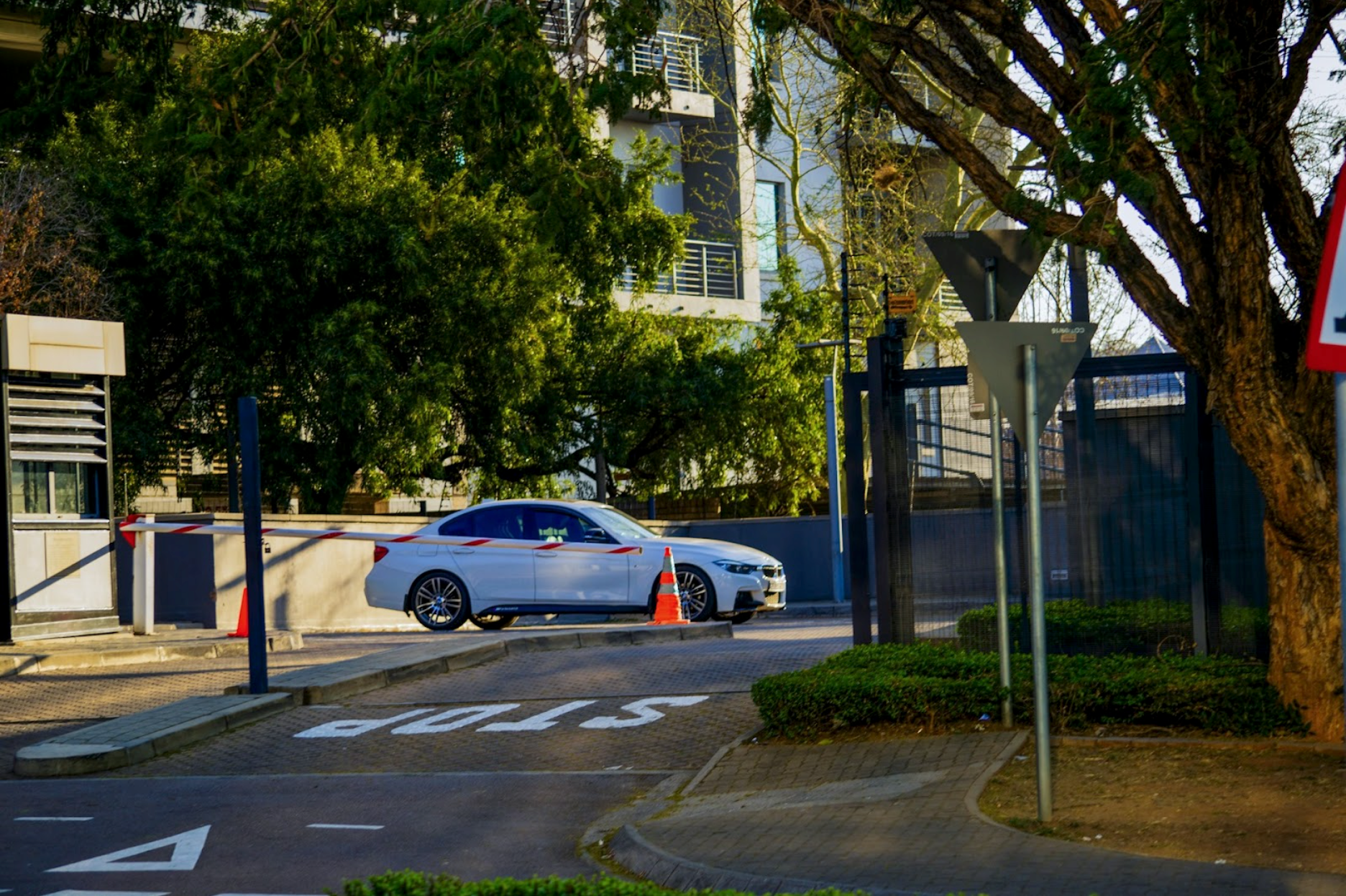

Controllers, readers, and software often get discussed when planning access control, yet the quiet hero is the cable that ties it all together. When systems extend to gates, perimeter doors, parking structures, and remote panels, the link is exposed to harsh conditions. The protocol needs a clean, stable path. The environment tries to break that path every day. That tension is exactly why people should prioritize burial-rated OSDP cable for reliable, long-term performance outside the core of a facility.

Open Supervised Device Protocol changed the baseline for security wiring. OSDP supports secure, bi-directional messaging between readers and controllers, with supervision that flags tamper events, offline states, and line health issues. It rides on a balanced electrical layer that tolerates distance better than legacy formats and enables multi-drop segments. However, protocol advantages only become apparent when the physical layer ensures signal integrity. If moisture creeps in, jackets crack, or interference leaks in, the line starts dropping packets, and your logs fill with noise. In our experience, the right burial construction prevents most of those headaches before they start.

OSDP Fundamentals That Shape Cable Decisions

OSDP runs over a differential signaling scheme and supports multi-drop topologies, which means the pair must maintain consistent impedance and low noise along the route. That electrical stability enables the controller to poll devices, verify their status, and push configurations in real-time. The same stability ensures that encrypted traffic continues to move without retries. When extending OSDP beyond the building envelope, the cable is exposed to temperature fluctuations, water, soil pressure, vibration, and the electromagnetic fields surrounding high-energy equipment. That’s why using cables that keep geometry tight, keep water out, and provide a safe path for stray energy are essential.

OSDP’s fit for campus-scale networks also interacts with the underlying physical standard. The bus characteristics align with RS485 cables, so anything that degrades a balanced pair will be noticeable in the field as jitter or intermittent offline events. Durable construction is not a luxury in this context. It is table stakes for stable communication over distance.

Why Outside Routes Stress Weak Cabling

Perimeter devices operate in variable conditions. Conduit can gather condensate. Sunlight can embrittle low-grade jackets. Freeze-thaw cycles can pump moisture into micro-cracks. Nearby lighting circuits, gate operators, and motors can couple noise into unprotected pairs. Standard low-voltage cable struggles with those combined stresses. A burial-rated OSDP design addresses these issues at the material and geometry levels, ensuring the electrical behavior remains within the protocol’s tolerance. That is the difference between a system that works most days and a system that passes inspections, runs quietly, and resists drift for years.

One common question is where to begin. Start with environment, distance, and interference exposure. If the route touches soil or exposed conduit for any meaningful length, a burial OSPD construction belongs on the specification. If parallel runs cross power distribution or drive equipment, elevate shielding. If the longest path pushes voltage margins, adjust conductor size.

What Separates Burial-Rated OSDP Cable

A high-quality burial construction utilizes water-blocking elements to prevent capillary action along the core. It pairs those elements with jacketing compounds that resist abrasion, cuts, and chemical exposure. Inside the jacket, stable insulation and controlled twist geometry hold characteristic impedance across temperature swings. That stability maintains a tight and predictable differential signal. In field reviews, two key benefits emerge. First, the link stays up through storms and seasonal changes. Second, intermittent tickets decline because the cable no longer drifts in and out of spec as conditions change.

This is where weatherproof access control wiring shows its value. The design protects conductors from water ingress, shields from corrosion, and maintains the pair geometry against deformation under pressure. Electrical parameters remain consistent, which reduces retries and ensures accurate events.

Because these runs often extend farther than interior links, the power leg also matters. The best installations keep data and power within the same engineered assembly to maintain predictable coupling. They also right-size the power conductors for the distance, which leads directly into the gauge discussion.

Shielding is the Quiet Guardian of Data Integrity

Noise control outside the core of a building is non-negotiable. Long routes can shadow street lighting circuits, irrigation pumps, and vehicle chargers. Without a shield, that energy finds its way onto the pair and shows up as latency, dropouts, or false states. A shielded OSDP composite cable places the OSDP pair and power conductors inside a continuous foil and drain path, creating a low-impedance return for unwanted fields. That simple design choice supports the protocol’s encryption, supervision, and timing because the signal now rides in a controlled envelope instead of sharing space with ambient noise.

There’s also efficiency gains when teams adopt multi-conductor composite cables for these runs. A unified assembly streamlines pulls, reduces junction points, and maintains consistent geometry. That makes performance more predictable across multiple gates or perimeter readers. Predictability is a performance feature in access control. The fewer variables you introduce at the physical layer, the fewer intermittent issues you chase later.

For a broader view of system design topics that connect to these choices, our Security and Access Control Resource Center curates foundational guides and product education.

Conductor Size and Material Choices for Long Routes

Distance and load set the stage for selecting a conductor. For reader power across perimeter runs, a larger wire reduces voltage drop and preserves device headroom during cold starts or peak loads. Many frequently use a power leg with 16 awg wire in composite constructions when the route length and device draw call for it. The OSDP data pair still adheres to the electrical target the protocol expects. Together, that combination maintains signal integrity and steady voltage at the edge.

Conductor quality also matters. Uniform copper conductors maintain consistent resistance and stable terminations over time. Paired with robust insulation and a tight seal, the assembly delivers consistent electrical performance throughout the seasons.

Why Burial Design Drives Uptime and Compliance

A burial-rated assembly excels at three key tasks. It rejects water, it resists mechanical damage, and it maintains electrical parameters while doing both. Those jobs directly serve OSDP’s strengths. Because the protocol supervises devices and validates communication, it surfaces marginal links quickly. The right cable keeps those alerts from ever appearing. That stability supports security outcomes and operational continuity. It also supports audits because the construction carries the ratings and markings that authorities expect to see on exterior routes.

Each documentation package details the jacket print legends, shield type, insulation system, and listing information, which enable inspectors to verify what they see on-site. Clean paperwork, combined with a compliant construction process, creates a smoother acceptance path and fewer schedule surprises.

Practical Selection Cues Without Installation Advice

When assembling a bill of materials for a perimeter or access control project, it’s important to evaluate the cable requirements early in the planning process. Consider whether the environment calls for a composite cable designed for security and access control systems, particularly in areas where space or routing flexibility is limited. A listed access control cable with an appropriate burial rating and water-blocking construction supports long-term reliability in outdoor or exposed conditions.

Shielding should be chosen to align with the site’s interference profile, providing the necessary protection for consistent signal integrity. Power conductor size should match the intended distance and load requirements, while data pairs must meet the electrical specifications of the system protocol. Selecting the correct jacket rating for each environment along the route and confirming that documentation meets code requirements helps streamline inspection and maintain compliance. These considerations collectively safeguard the differential signals that OSDP systems rely on.

This same approach benefits larger systems, such as campus networks or multi-gate access layouts. When a connection extends to the perimeter, the cable becomes a vital system component rather than a generic material, treating it with that level of importance helps ensure dependable performance and uptime.

Next Steps

Outdoor access control succeeds when the physical layer respects both the protocol and the environment. Burial-rated constructions protect geometry and materials from water, sun, and stress. Shielding preserves the clean, balanced signal OSDP needs to move encrypted, supervised traffic without drama. Correct conductor sizing maintains voltage at the edge, which protects device behavior. Composite assemblies simplify routing and improve predictability across multiple endpoints. Put together, those choices deliver quiet reliability day after day.

If you want to compare jacket systems, shielding styles, and composite options side by side, our Security and Access Control Resource Center is a helpful starting point. For project reviews or specification questions, reach out through our contact page. We are happy to help teams match environmental realities with cable designs that support solid performance outside the core of the facility.
