Selecting the Right DAS Antennas for Optimal In-Building Coverage

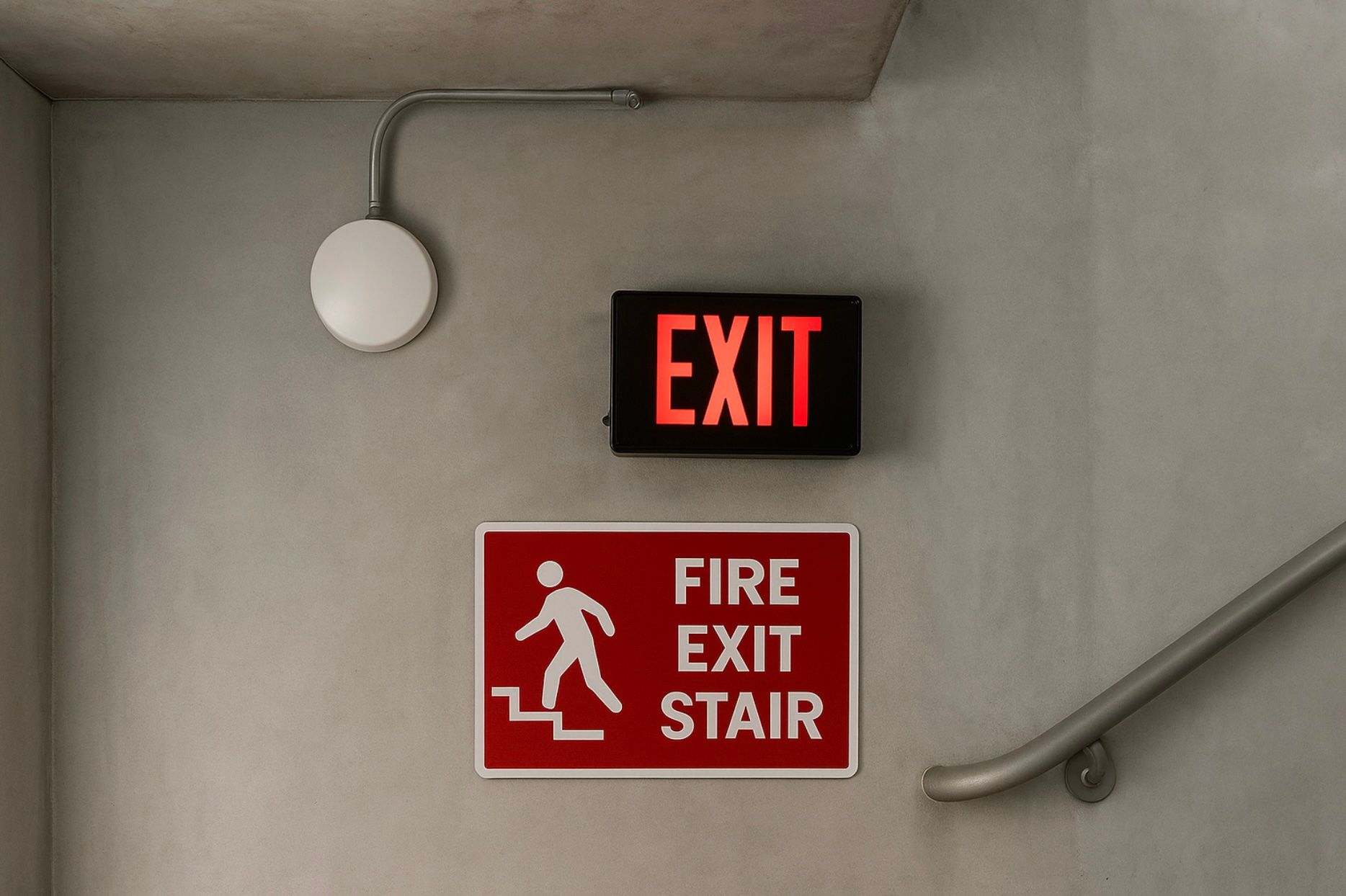

When discussing wireless performance with project teams within large facilities, the conversation often begins with frustration. Calls drop, data crawls, and first responder radios struggle in stairwells or basements. Those symptoms typically indicate a need for a distributed antenna system (DAS). At a high level, a DAS receives signals from donor sources, conditions them, and distributes the RF energy throughout a building via a network of coax, fiber, splitters, and DAS antennas. The goal is not to flood the space with power. The goal is to deliver the right level of signal, on the right bands, in the right locations.

We see two common needs. The first is commercial connectivity for cellular voice and data. The second is public safety DAS to support code-driven coverage for fire, police, and emergency medical services. While the hardware may look similar from a distance, the requirements differ. Public safety channels must meet stringent performance and survivability criteria. Commercial systems focus on capacity and user experience across multiple operators and technologies. In both cases, antenna decisions sit at the center of system success.

Types of DAS Antennas and Their Applications

The variety of ceiling heights, construction materials, and room shapes inside a building drives antenna diversity. You can group the most common choices into three families.

Omnidirectional Antennas

These ceiling mount units radiate evenly in the horizontal plane. Omnis are good when you want broad, uniform coverage across open areas such as concourses, lobbies, or shared office floors. An omni placed in the right spot can simplify design by illuminating a large footprint without requiring tricky alignment. A model such as the AD-OMNI-SISO-N is a good example of a purpose-built component that fits common commercial applications. When evaluating omnidirectional candidates, consider the frequency range, gain, vertical pattern, and connector type to ensure the part matches the planned bands and the cable plant.

Directional Antennas

Hallways, long galleries, and warehouse aisles often benefit from directional patterns. A panel or patch antenna focuses energy down a corridor or into a defined zone, which boosts usable signal where people actually move and work. Directional gain also helps overcome losses from heavy walls or glass partitions. When selecting directionals, examine the half-power beamwidth, front-to-back ratio, and how the pattern interacts with structural features along the route.

Specialized Antennas

Venues such as hospitals, airports, and stadiums may have specialized needs. Low-profile units reduce visual impact in sensitive spaces. MIMO-capable models support advanced air interfaces for commercial systems. Plenum-rated housings are specified in some documents. It is also common to encounter antennas that incorporate band-selective features to mitigate interference between services. Specialized DAS antennas help tune performance without adding unnecessary complexity to the RF path.

A high occupancy office requires even, comfortable coverage at moderate speeds. A convention center may need denser layouts near stages and foyers. A courthouse or manufacturing plant may prioritize public safety channels and voice intelligibility in areas with heavy concrete. A thoughtful mix of antenna types usually yields the best results.

Advanced RF Technologies Shaping DAS Antennas

Antenna design continues to advance as spectrum usage evolves. Multi-band support, improved patterns, and better materials give teams more flexibility. Companies like ADRF (Advanced RF Technologies) contribute to that momentum by building components that address real-world issues such as interference, capacity, and multi-operator support. Here are three trends that are making a difference in projects.

First, wider operating ranges. Antennas that cover both traditional public safety bands and cellular bands reduce part counts and simplify spare parts management. Second, tighter control over sidelobes and nulls. Better patterns reduce bleed into unwanted areas and help maintain signal quality in complex floor plans. Third, mechanical refinement. Secure mounts, robust connectors, and visually neutral housings help designers place antennas in more locations without disrupting the space.

For teams selecting parts, the spec sheet tells only part of the story. It is important to know how a given antenna behaves when placed near metal, how it interacts with cable losses at the targeted frequencies, and how it performs when many units operate in proximity. Those questions guide toward components that support capacity and clarity throughout the day, not just in a lab test.

Public Safety DAS Requirements and Compliance Factors

Public safety coverage is not optional. Building codes and national standards define it as a core requirement. Systems must align with frameworks that reference UL 2524 for in-building two-way emergency communication, along with NFPA and IFC guidelines for survivability, monitoring, and performance. Antenna selection plays a role in meeting these requirements.

When evaluating antennas for public safety DAS, you will want to start by confirming documented support for the appropriate frequency bands. Gain values also matter, since they help extend coverage into hard-to-reach spaces without creating interference elsewhere. Material quality and mounting options come into play as well, since they contribute to system durability and overall pathway survivability. Even the best amplifiers and cabling can be undermined by antennas that fail to meet performance standards.

For building owners and managers reviewing proposals, it is important to request data sheets and proof that antennas, splitters, and other passive components match the frequency and performance criteria set by the local authority. Choosing tested and approved DAS antennas not only helps projects pass acceptance testing but also simplifies ongoing recertification, avoiding costly delays or retrofits down the line.

Choosing DAS Antennas for Optimal Performance

Antenna choice starts with a model of the building and the intended services. From there, you should weigh several practical factors.

Coverage Area and Layout

Large, open floors respond well to omnis, especially if the ceilings are at a consistent height. Long corridors, stairwells, and atriums often favor directionals. Mixed-use towers tend to utilize both. The aim is to fill zones with a usable signal and avoid hot spots that cause interference or overload.

Frequency Bands

A distributed antenna system may carry public safety channels, low- and mid-band cellular, and possibly higher bands, depending on carrier needs. An antenna must cover the required bands with consistent patterns and documented gain. If a component exhibits a dip in gain at a critical band, coverage may appear good on paper but fall short in real-world use.

Power and Losses

Cable length, splitters, and connectors introduce attenuation. An antenna’s gain should complement that performance budget. A small gain increase may recover many meters of coax loss at higher frequencies. Balanced designs help the radiating element and the feedline work together to deliver a clean signal to the user’s device.

Aesthetics and Mounting

In many facilities, antennas sit in visible areas. Low-profile versions help maintain the design intent. Mechanical quality matters too. Solid brackets and well-made connectors reduce service issues during moves, adds, and changes.

Commercial vs. Public Safety Priorities

In commercial deployments, capacity and user experience are key drivers of decision-making. For public safety, DAS, talk about coverage, intelligibility, and code-referenced testing. Those goals converge at the antenna tip. The right device supports both the performance and the compliance story for the site.

DAS Antenna Solutions That Make Sense

Selecting DAS antennas is not a one-size-fits-all exercise. Every building presents a unique blend of construction types, occupancy patterns, and service objectives. By understanding how omnis, directionals, and specialized models behave, project teams can pair antenna types with zones that benefit most from each pattern. By paying attention to band support, gain, mechanical quality, and integration, you can build a system that meets both commercial and public safety DAS objectives.

We touched on components such as the AD-OMNI-SISO-N for broad coverage needs and noted how vendors like ADRF push advanced RF technologies that improve clarity, capacity, and multi-band performance. We also emphasized that compliance is a system-level outcome. Antenna selection plays a real role in meeting UL 2524, NFPA, and IFC expectations, and it supports acceptance testing and ongoing recertification.

As you plan or upgrade a distributed antenna system, keep both the user experience and the first responder experience in mind simultaneously. Walk the layout, consider how people move, and think about the path loss between the antenna face and the device, whether it is in a hand or on a belt. The right choices upstream make coverage predictable, which in turn helps with daily operations and emergency response.

If you are ready to review cable options that complement your selected antennas, or you want part numbers that match your bands and connectors, visit the DAS Resource Center. For conversations about project specifics, timelines, or documentation needs, reach out through our contact page. We aim to support your team with reliable products and clear information so your DAS performs the way your stakeholders expect.
