When building a network that delivers consistent performance, selecting the correct plug for each cable matters more than many realize. We regularly work with project managers, contractors, and system designers who know the specifications of their cables but want support regarding plug compatibility. That’s especially true with CAT 6 plugs, which vary in size, shielding, and fit.

Plug-to-cable mismatches can lead to unreliable terminations, data transmission errors, and physical wear over time. We approach every structured cabling system with a clear focus: verify that each RJ45 plug aligns with the cable’s jacket size, conductor gauge, and shielding type. These technical details directly affect network stability and speed.

We'll review how to select the right CAT 6 plug, the difference between shielded and unshielded options, and what to consider when designing commercial or industrial network systems using CAT6 cables.

Why CAT 6 Plug Compatibility Matters

CAT 6 cables support up to 250 MHz transmission frequencies, delivering Gigabit and limited 10 Gigabit Ethernet functionality. But without a plug that matches the cable's size and shielding, that performance won’t translate into real-world results. Improper fit or electrical contact causes signal loss and weakens the network backbone.

In structured cabling systems, RJ45 plugs terminate patch cords, horizontal runs, and links between active equipment. Each plug must create a reliable interface between the cable’s conductors and the network hardware. Performance degradation often begins at the termination point, which makes plug compatibility a critical factor in network design.

To help clarify product choices, check out the Category Cable Resource Center, where you can review details such as jacket outer diameter, wire gauge, and plug-to-cable pairings.

Understanding CAT 6 Plug Types and Their Functions

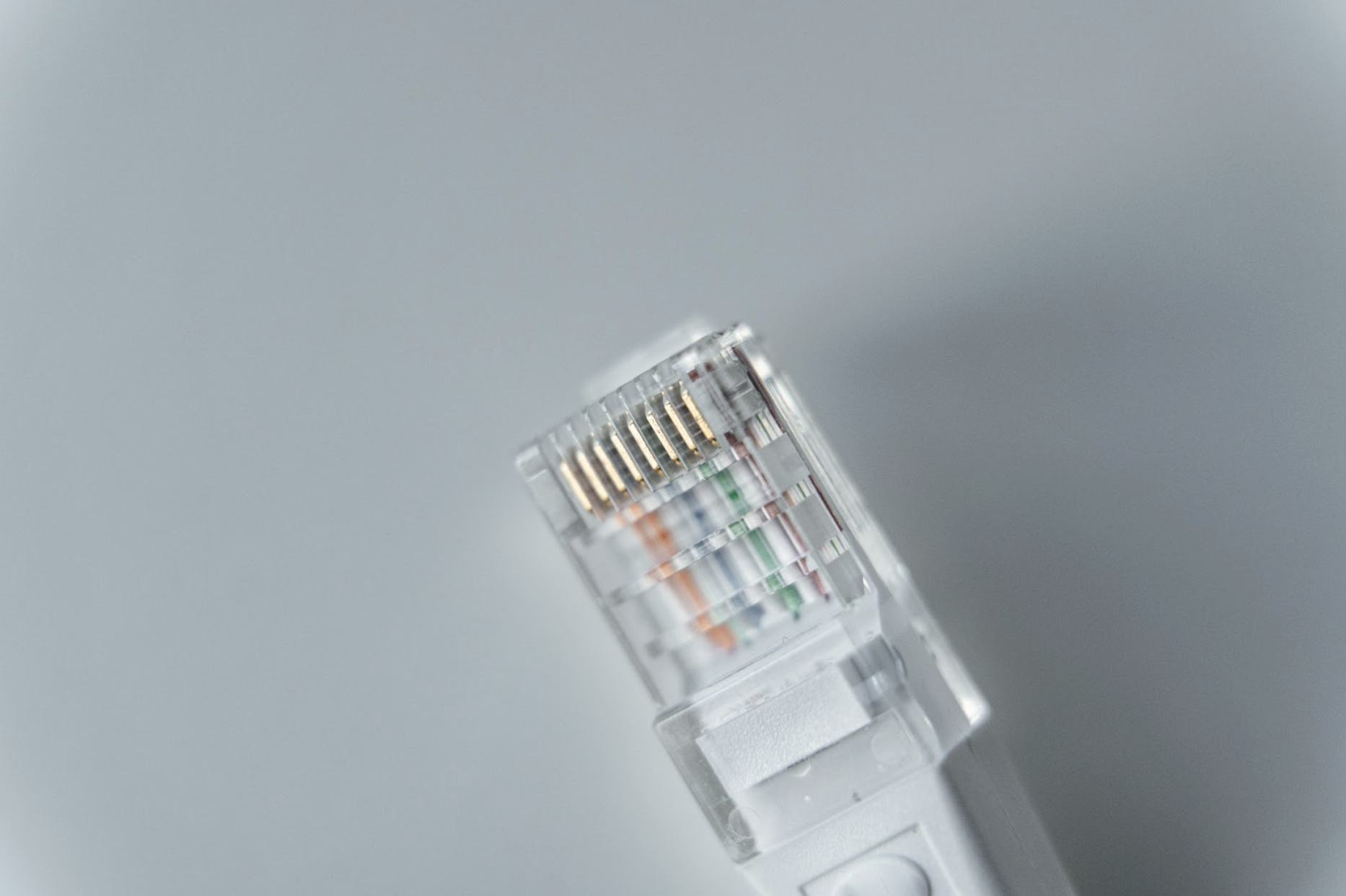

Most CAT 6 systems use RJ45 plugs, the standard eight-position modular connectors on Ethernet cables. These plugs form the endpoints of patch cords and serve as the interface between cabling and network devices.

Standard RJ45 plugs work with unshielded twisted pair (UTP) cables. They lack external shielding but serve well in low-noise environments like most commercial offices. Their design simplifies installation and reduces material costs.

Shielded RJ45 plugs, on the other hand, incorporate a metal casing that connects to the cable’s foil or braided shield. These plugs help reduce electromagnetic interference (EMI) and provide grounding continuity. Matching plug shielding with Cat 6 shielded cable keeps the full shielding path intact, which protects sensitive data transmissions from noise or distortion.

A plug only performs properly when it mates precisely with the cable’s dimensions and characteristics, including jacket thickness, conductor diameter, and shielding configuration.

Shielded vs. Unshielded CAT 6 Plugs: When and Why It Matters

Selecting between shielded and unshielded plugs depends on the surrounding environment and the cable type used in the build. Industrial and manufacturing settings often generate higher levels of EMI from motors, lighting systems, or heavy equipment. In those cases, we specify Cat 6 shielded plugs that match the cable’s foil or braided armor.

Shielded plugs maintain electrical grounding and reduce performance loss in high-interference zones. Their design adds an extra layer of protection to support mission-critical operations and data-sensitive equipment.

In contrast, unshielded plugs function well in controlled environments with minimal interference. Commercial office networks, administrative buildings, and standard telecommunications closets typically use unshielded plugs and Cat6 cables.

Incorrectly mixing a shielded cable with an unshielded plug creates an open circuit in the shielding path. That gap reduces protection and may introduce signal errors. Compatibility must remain consistent from cable to plug to network hardware.

For those comparing cat6 vs 6a, remember that CAT 6A typically includes more robust shielding and a larger diameter. Not every CAT 6 plug will fit a CAT 6A cable, so size and shielding require attention when selecting components.

This CAT5e, CAT6, and CAT6A blog outlines key performance differences and how to align cables with connectors.

Key Factors for Choosing the Right Plug for Your CAT 6 Cable

When selecting the best RJ45 plug for a network build, we evaluate three critical variables: conductor compatibility, cable outer diameter, and shielding fit.

Conductor compatibility ranks first. Most CAT 6 cables use 23 AWG solid copper conductors. Some plugs work only with stranded wire, while others accept solid copper. Matching the plug to the conductor type prevents misalignment and contact issues.

Cable jacket diameter also plays a significant role. Plug housings accommodate a limited size range, and a jacket that’s too thick or too thin may prevent secure fitment. Tolerance margins matter more with shielded plugs requiring contact between the cable shield and plug body.

Shielding continuity matters most in industrial applications. If the cable uses foil or braid shielding, the plug must support a direct path for grounding. That often means selecting plugs with integrated ground tabs or internal metal contacts that press against the foil.

Compliance with standards such as ANSI/TIA should also be considered. Matching cables and plugs to these guidelines helps maintain consistent performance across the structured cabling system.

For CAT 6A cables, the thicker insulation and internal separators demand larger plug cavities. Selecting a plug not rated for CAT 6A leads to excessive compression, poor contact, and unreliable terminations.

The Role of RJ45 Termination in Network Efficiency

Termination quality still drives performance even when using the best plugs and cable. Each termination must maintain conductor order, shield continuity (if present), and firm physical contact between wires and the plug interface.

Proper RJ45 termination techniques reduce latency, maintain impedance balance, and prevent packet loss. While we don’t focus on termination procedures, we emphasize selecting plug designs that support consistent and repeatable results.

Some RJ45 plugs use load bars or conductor guides to keep pairs in the correct layout. Others use one-piece slots that require precise trimming before seating. Matching the plug style to the technician’s tooling and workflow can help improve speed and reduce installation errors.

Correctly terminating Cat6 cables at both ends prevents system slowdowns, helps meet certification test results, and reduces callbacks or replacements.

Final Considerations for Commercial and Industrial Networks

Plug selection doesn’t get the same spotlight as cable type, but it plays a critical role in network integrity. Every plug must match the cable’s physical and electrical properties, including gauge, shielding, jacket size, and use case.

A poorly matched plug introduces connection gaps, intermittent performance issues, and unnecessary strain on the termination. Shielded plugs help eliminate interference in noisy environments, while unshielded plugs provide an efficient solution in clean settings.

Standardizing plug-to-cable pairings improves performance tracking, reduces waste, and keeps installations on schedule when working across large deployments. Technicians benefit from consistent component performance, and project leads gain confidence in long-term system stability.
