In building safety and critical infrastructure, 2-hour fire-resistive cables are vital components that ensure the continued operation of essential systems during a fire. Because of their engineering, these cables resist even the highest temperatures, allowing them to continue functioning and be reliable in the most trying circumstances. A 2-hour fire rating means that the cable can endure exposure to fire for at least two hours, preserving the crucial systems it supports. This time window is critical, providing valuable moments for emergency response teams to act and for occupants to evacuate safely.

The importance of 2-hour fire-resistive cables cannot be overstated, as they play a pivotal role in safeguarding both lives and property. By ensuring the continuous operation of emergency lighting, fire alarms, and life safety systems, these cables help prevent catastrophic failures in critical infrastructure. A closer examination of their applications and the regulatory standards governing their use is essential for understanding their role in enhancing fire safety.

Understanding Fire-Resistive Cables

Definition and Features

Fire-resistive cables can withstand high temperatures and continue operating in the event of a fire. These cables typically feature robust construction with materials that can resist burning and prevent the spread of flames. Common features include:

• Heat-resistant insulation: Made from magnesium oxide, ceramic, or specialized polymers.
• Protective sheathing: Often constructed from metal or other fireproof materials to shield the inner conductors from heat and flames.
• Durable construction: Designed to endure mechanical stress and maintain electrical integrity under extreme conditions.

These attributes allow fire-resistive cables to maintain functionality during a fire, providing power and communication to critical systems such as emergency lighting, fire alarms, and life safety equipment.

Importance of Fire Resistance

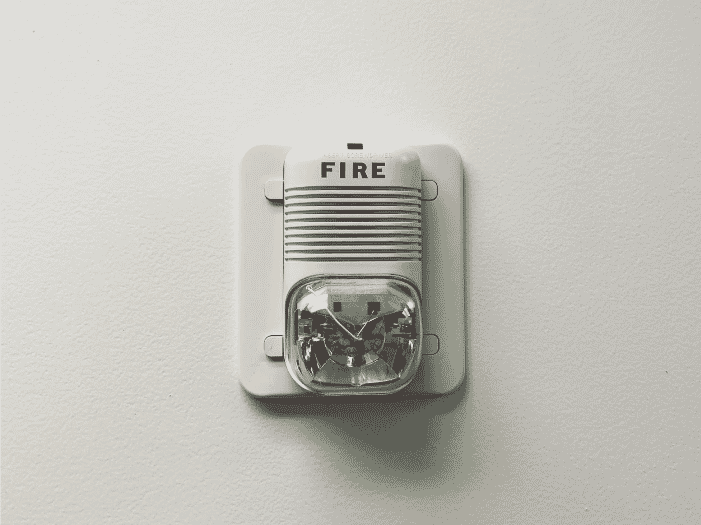

Fire resistive cables are essential for critical systems to function during a fire. In emergency power systems, these cables enable the operation of backup generators and emergency lighting, helping occupants evacuate safely. Power and communication are necessary for effective emergency response for life safety systems, such as fire alarms and sprinkler controls.

Critical infrastructure, including hospitals, high-rise buildings, and tunnels, uses fire-resistive cables to prevent catastrophic failures. This resilience enhances safety, minimizes damage, and facilitates quicker recovery after a fire incident.

Types of 2-Hour Fire Resistive Cables

Mineral-Insulated (MI) Cables

Mineral-insulated (MI) cables are renowned for their exceptional fire resistance and long-lasting durability. They are designed with a robust copper sheath and magnesium oxide insulation, offering superior protection against high temperatures and mechanical damage. The copper sheath acts as a formidable barrier against flames and physical impacts, while the magnesium oxide insulation ensures that the cable maintains its electrical integrity even under extreme heat.

Consider our 2-hour fire cable, part number 762320FPLP-CI, for a reliable solution. This low-voltage wire features an 18 AWG 2 conductor bare copper design with a shielded plenum construction, providing maximum safety during emergencies. UL-listed for 2-hour fire resistance, this cable is engineered to withstand temperatures far exceeding typical fire conditions, ensuring the ongoing functionality of critical systems.

Benefits of the 18-02 OAS SOL FPLP 2HR CI cable include:

• High fire resistance: Capable of enduring temperatures well beyond those encountered in standard fire scenarios.
• Mechanical robustness: Resistant to crushing, impact, and chemical exposure, with added shielding for enhanced protection.
• Longevity: This cable, with a red LSZH jacket for easy identification and compatibility with our RackPack Field Systems Solution, is durable and convenient for efficient handling and maintenance

Our 2-hour fire-rated alarm cable exemplifies our commitment to safety and quality, ensuring your property remains protected under the most challenging conditions.

Metal Clad (MC) Cables

Metal-clad (MC) cables are a widely favored choice for fire-resistive applications. They are known for their durable construction and reliable performance. These cables feature robust metal armor, typically made from aluminum or steel, which provides a strong protective layer against physical damage and fire hazards. Within this armor, the conductors are insulated with fire-resistant materials, ensuring continued operation even under high-temperature conditions.

Our Part Number 712100LSZH 2-Hour Fire-Rated Cable is an excellent option for those seeking top-quality fire-resistive solutions. This low-voltage wire is an excellent choice for fire-resistive systems. It features a 16 AWG 2 conductor bare copper design, shielded for added protection. Unlike plenum cables, it incorporates Low-Smoke Zero-Halogen (LSZH) insulation, providing enhanced safety and compliance with stringent industry standards.

Features of our fire-resistive MC cable include:

• Armor protection: The aluminum/aramid shield safeguards against physical damage while preventing fire spread.
• Fireproof insulation: LSZH insulation maintains cable functionality in high-temperature conditions, which is critical for safety-focused systems.
• Versatility and reliability: With a .365" nominal OD and a weight of 75 lbs/Mft, this cable is suitable for various applications, including power distribution and control systems, and is easily identifiable with its red jacket.

Certified under the ANSI/UL 2196 FHIT System 28B, this 2-hour fire cable also features the innovative Windy City Wire RackPack transportation system and patented SmartWire technology, offering advanced functionality and ease of use. This cable exemplifies durability and reliability, making it essential for any fire alarm system.

Ceramic-Based Insulation Cables

Ceramic-based insulation cables utilize advanced ceramic materials to achieve superior fire resistance. These cables maintain electrical integrity and insulation properties even when exposed to intense heat. The ceramic insulation can withstand temperatures that would cause other materials to degrade, making these cables ideal for the most demanding fire-resistive applications.

Advantages of ceramic-based insulation cables include:

• Extreme heat resistance: Capable of enduring the highest temperatures encountered during a fire.
• Stable performance: Maintains electrical and physical properties under prolonged exposure to heat.
• Enhanced safety: Minimizes the risk of cable failure and allows for continuous operation of critical systems.

Applications and Uses

Emergency and Safety Systems

2-hour fire resistive cables are indispensable in emergency and safety systems. They keep emergency lighting, fire alarms, and sprinkler systems operational during a fire, enabling a safe evacuation and effective emergency response. These cables perform under extreme conditions, maintaining power and communication pathways critical for life safety.

Building and Infrastructure

Maintaining power and communication during a fire is essential in large-scale buildings and infrastructure projects, such as high-rise buildings, tunnels, and hospitals. Fire resistive cables provide the necessary resilience so structures can withstand fire events without catastrophic failures. By preserving the functionality of critical systems, these cables help protect occupants and minimize damage, contributing to overall safety and stability.

Choosing the Right Cable

Factors to Consider

Selecting the suitable 2-hour fire-resistive cable involves considering several key factors:

• Maximum Temperature Resistance: Evaluate the cable's ability to withstand the highest temperatures expected during a fire.
• Environmental Conditions: Consider the specific environmental conditions, such as humidity, chemical exposure, and mechanical stress, that the cable will operate in.
• Electrical Requirements: See if the cable meets specifications, including voltage ratings and current-carrying capacity.

Compliance and Building Codes

Navigating building codes and paying attention to compliance with local and international fire safety regulations matters when selecting fire-resistive cables. Consult relevant codes and standards, such as the NEC and NFPA, to determine the specific requirements for your application. Ensuring compliance enhances safety and helps avoid legal and financial repercussions associated with non-compliance.

Best Practices for Fire-Resistive Cables

Effective Planning and Documentation

Proper planning and thorough documentation are crucial for ensuring the protection provided by fire-resistive cables during a fire. A comprehensive plan should include precise cable route layouts and a thorough examination to ensure complete adherence to fire safety regulations.

Ensuring Secure Placement

To maintain the integrity of fire-resistive cables, it is important to use appropriate supports and fasteners that prevent sagging and physical damage over time. Properly secured cables are less likely to experience wear or compromise under extreme conditions.

Implementing Protective Measures

Protective measures such as conduits or raceways should be employed to enhance the longevity and effectiveness of fire-resistive cables. These measures shield the cables from mechanical damage and environmental exposure, preserving their fire-resistant properties.

Navigating Common Challenges

Managing Confined Spaces

Working within tight spaces can present challenges to maintaining the integrity of fire-resistive cables. Careful planning is essential to navigate confined areas without compromising the cable’s protective features. Flexible cables may offer a solution in such scenarios.

Minimizing Interference

Addressing potential sources of electrical interference is important to ensure optimal performance. This involves maintaining a proper separation from power cables and other sources of electromagnetic interference, thereby preserving the cable’s functionality under all conditions.

Maintenance and Inspection

Routine Checks

Regular inspections make sure that fire-resistant cables retain their protective features over time. Implement a routine inspection schedule to identify and address any signs of wear, damage, or improper installation.

Maintenance Tips

Maintaining fire resistive cables involves the following:

• Cleaning and Inspection: Keep the cables clean and inspected regularly to avoid dust and debris accumulation, which can impair functionality.
• Repair and Replacement: Promptly address any signs of damage by repairing or replacing affected sections to maintain the integrity of the fire-resistive properties.

Advances in Fire Resistive Technology

Innovations

Recent advancements in fire-resistive cable technology include improvements in materials and construction techniques. Innovations such as enhanced ceramic insulators and more robust protective sheathing are pushing the boundaries of fire resistance, providing even greater safety.

Emerging Trends

Current developments in fire-resistive cables emphasize:

Eco-Friendly Materials: The industry increasingly focuses on developing sustainable, environmentally friendly materials that adhere to stringent fire safety standards.

Smart Cables: Integrating innovative technology allows real-time monitoring and diagnostics, significantly enhancing maintenance and performance.

Finding The Right 2-Hour Fire-Resistive Cable

Understanding and choosing suitable 2-hour fire-resistive cable options provide safety for people and compliance in your building projects. These cables play a major role in maintaining the functionality of critical systems during a fire, providing a crucial layer of protection for occupants and infrastructure.

Our Fire Cable Solutions resource center is a great starting point for more information on this topic. From there, you can shop PVC cables with 2-hour fire-resistive features.
