16 AWG Fire Alarm Wire in Life Safety Systems

In life safety systems, signal reliability is not optional. A fire alarm network depends on stable communication between devices, control panels, and notification circuits, and that communication starts with the cable itself. Wire gauge is one of the most basic specifications in the design process. Still, it has a direct effect on how the system performs across distance, under load, and within the physical conditions of the building. That is why AWG is not just a sizing label in a cut sheet. It is a real performance variable.

16 AWG fire alarm wire is one of the most common balance points in low-voltage life safety design. It is widely specified because it supports a practical combination of conductor size, electrical performance, and flexibility across many system layouts. It's important to know what AWG means for a fire alarm system. On top of that, this is a closer look at learning why 16 AWG is so commonly used, where it fits within commercial applications, and how rating and construction choices shape performance in low voltage fire wire and cable and broader fire life safety wire and cable systems.

What AWG Means for Fire Alarm Cable Performance

AWG stands for American Wire Gauge, the standard used in North America to describe conductor diameter. The scale works in reverse, so a lower gauge number means a larger conductor, while a higher gauge number means a smaller conductor. That relationship matters because a larger conductor generally has lower resistance and greater current carrying capability than a smaller one.

In a fire alarm application, that difference affects how well the cable supports signal transmission and power distribution over distance. Resistance increases as conductor size decreases. As resistance increases, voltage drop becomes a greater concern, especially when circuits extend across a large building or support multiple connected devices. In a small or simple circuit, that difference may seem minor. In a large commercial layout, it becomes much more important.

This is why 16 AWG wire comes up so often. It occupies a useful middle ground. It offers lower resistance than thinner conductors such as 18 AWG, yet it does not move into the heavier profile associated with 14 or 12 AWG. In practical terms, that makes it a common choice in applications where signal reliability and usable voltage matter, but where the design does not call for the largest conductor size available.

AWG selection is especially consequential in fire alarm systems because they often span long corridors, multiple floors, mechanical spaces, and distributed device zones. The wire is not just physically connecting one point to another. It is helping carry communication and power in a system where consistency matters.

Why 16 AWG Fire Alarm Wire Is a Standard in Life Safety Design

One reason 16 AWG fire alarm wire is so common is that it provides a strong balance between electrical performance and practical system use. Larger conductors reduce resistance but also increase cable size, potentially exceeding the circuit's requirements. Smaller conductors reduce cable size but also increase resistance, narrowing the margin available for longer runs or heavier loads. Sixteen AWG often falls between those two ends of the scale, which works well for many commercial fire alarm circuits.

From an electrical standpoint, 16 AWG supports lower resistance than 18 AWG across the same distance. That helps with voltage behavior on longer runs and supports more stable performance across circuits where multiple devices share the same pathway. In commercial buildings, where cable distances can stretch across large floor plates or multiple risers, that lower resistance can make a noticeable difference in how much usable voltage reaches the far end of the circuit.

This is one reason 16 AWG fire systems cable appears so often in schools, healthcare facilities, office towers, and larger institutional buildings. Those environments tend to have longer cable pathways and more distributed device layouts. Designers and engineers often specify 16 AWG because it provides a practical conductor size for many signaling and notification applications without requiring the larger, heavier gauges used in more power-intensive conditions.

In that sense, 16 AWG has become a standard reference point in low voltage fire wire and cable design. It is not the answer to every circuit question, but it is common because it fits a wide range of real-world system demands.

Applications for 16 AWG Fire Alarm Wire in Low-Voltage Life Safety Systems

The most useful way to understand 16 AWG is to examine where it appears in a life safety network. In many commercial systems, it is used across several major circuit types, each with its own performance requirements.

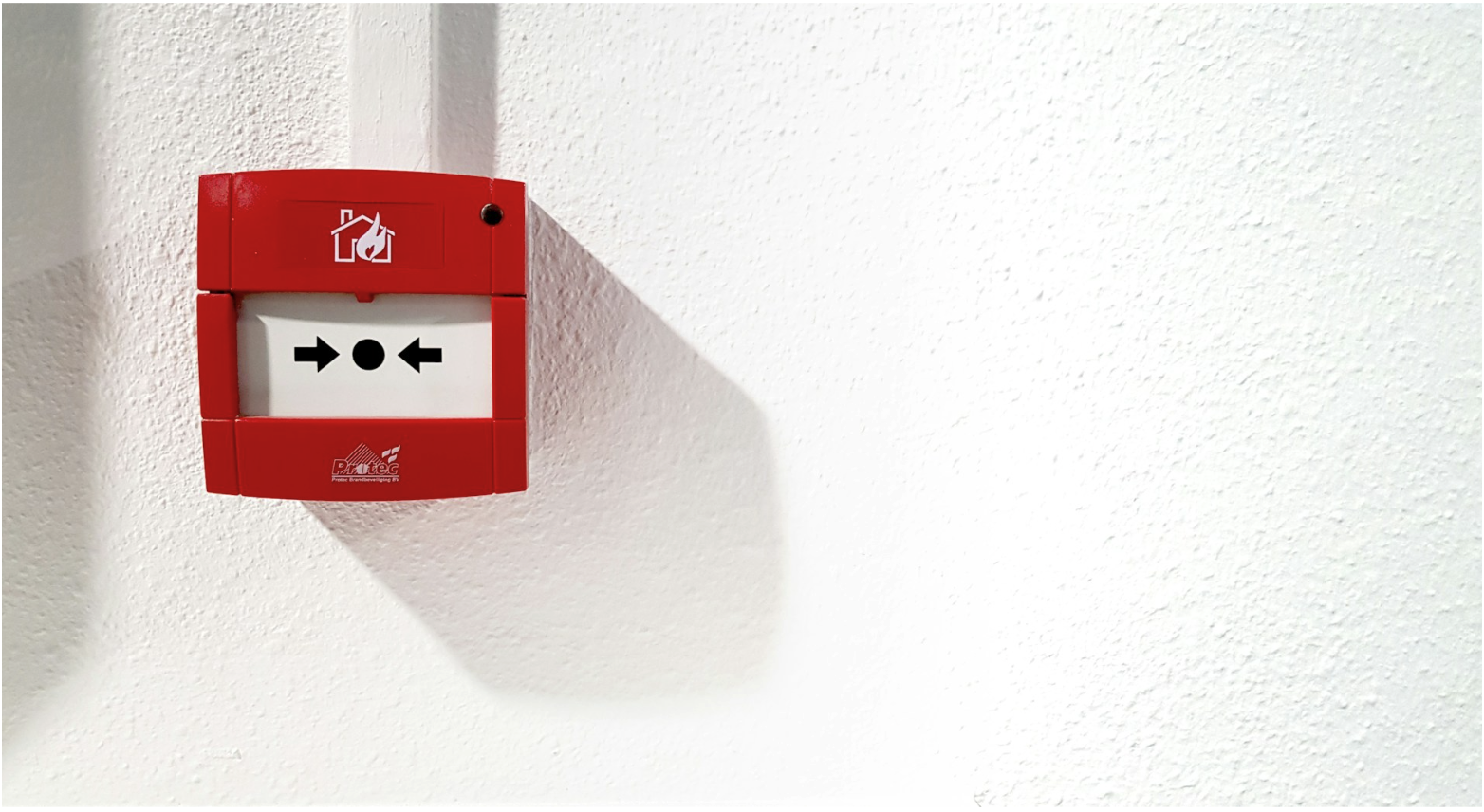

Initiating Device Circuits, or IDCs, connect devices such as smoke detectors, heat detectors, manual pull stations, and other initiating points back to the fire alarm control equipment. These circuits are often signal-focused, but they still depend on conductor size for stable communication, especially as pathway length increases. In larger buildings, 16 AWG fire alarm wire provides a stronger electrical path than thinner conductors when the circuit runs beyond shorter distances.

Notification Appliance Circuits (NACs) often make a stronger case for 16 AWG. These circuits power horns, strobes, speakers, and other notification devices that require consistent voltage to perform correctly. Because NACs carry current to active devices, conductor resistance plays a more obvious role in circuit behavior. This is one reason 16 AWG fire systems cable is so commonly used in notification pathways across commercial facilities. It offers a conductor size that supports the electrical demands of these circuits more comfortably than smaller wire in many layouts.

Signaling Line Circuits, or SLCs, introduce another important use case. In addressable systems, SLC loops carry communication between the control panel and field devices. While the current profile differs from NACs, conductor resistance still affects loop integrity, especially across larger addressable systems. In those environments, 16 AWG remains a practical conductor size because it supports dependable communication without unnecessarily increasing cable bulk.

These applications become even more relevant in larger facilities. A hospital, college campus building, office complex, or industrial facility may contain long device runs, multiple zones, and extended riser pathways. In those situations, the use of 16 AWG wire becomes less about preference and more about supporting performance across the total system design. That is why the phrase “applications for 16 AWG fire alarm wire in low voltage life safety systems” has such practical meaning. It points directly to the kinds of commercial environments where conductor size affects how well the system operates over distance.

Fire Alarm Cable Ratings: Plenum, Riser, and Shielding

Conductor size is only one part of the specification. The rating of the fire alarm cable also matters because the physical environment of the run affects which type of cable is appropriate.

FPL is the general-purpose fire alarm cable rating. It applies in spaces where neither riser nor plenum performance is required. FPLR is the riser-rated version used for vertical runs between floors. FPLP is the plenum-rated version used in air-handling spaces where stricter fire and smoke requirements apply. In each case, the gauge can remain the same while the rating changes to match the environment of the building.

That is an important distinction because 16 AWG fire systems cable may be available in each of these classifications. The gauge tells part of the electrical story, while the rating tells part of the environmental and code story. Both have to align with the actual application.

Shielding is another layer of consideration. In some system designs, shielded cable matters because the pathway runs near sources of electromagnetic interference. Certain SLC applications or electrically active building environments may benefit from shielded cable where signal stability becomes more sensitive to external noise. In other cases, unshielded cable is entirely appropriate. The design conditions determine that answer.

Conductor construction also matters. Solid conductors and stranded conductors each bring different characteristics to the cable. Solid conductors often support stable electrical performance in fixed pathways. Stranded constructions may be chosen where different handling characteristics are needed. The broader point is that gauge, rating, shielding, and construction all contribute to the final cable specification.

In all of these cases, compliance with NFPA 72 and local code requirements remains central. The authority having jurisdiction has final say, and the design should always align with the specific expectations of the project environment.

Key Factors When Specifying Low-Voltage Fire Wire and Cable

When a designer or engineer evaluates 16 AWG fire alarm wire, several questions help clarify whether it is the right fit. The first is circuit type. IDC, NAC, and SLC pathways do not place identical demands on the conductor. The second is run length. As the circuit gets longer, conductor resistance becomes more significant. The third is the building environment. A plenum, riser, or general-use space will affect the rating requirement. The fourth is shielding. If the system operates near possible interference sources, that may influence the cable construction.

The final factor is code and project compliance. Wire gauge is not a stand-alone choice. It is part of a broader electrical and environmental specification that must align with panel requirements, circuit calculations, and jurisdictional expectations.

For readers who want a more focused companion read on this subject, this article on when to use 16 AWG fire alarm wire in low-voltage fire and life safety systems expands on the practical role of this conductor size in system planning.

AWG selection in life safety systems is a technical decision with direct performance consequences. Conductor size affects resistance, voltage behavior, and communication stability across the full network. That is why 16 AWG fire alarm wire continues to hold such an important place in commercial fire alarm design. It provides a widely used balance between conductor size, electrical performance, and practical system application.

The value of 16 AWG comes from how often it aligns with the needs of real commercial circuits. It supports signaling, notification, and addressable communication in a conductor size that fits many system layouts without overreaching or falling short. For additional guidance on fire life safety wire and cable, the Fire Resource Center is a helpful next stop. For project-specific questions, readers can contact the team for more direct support.
