CATV vs Ethernet for Commercial Infrastructure
Commercial facilities rarely rely on a single communications infrastructure. In many environments, both CATV distribution systems and Ethernet structured cabling operate side by side, each serving a distinct purpose. Hospitality properties distribute television programming throughout guest rooms, healthcare facilities deliver entertainment and informational content to patient areas, and office campuses support thousands of networked devices through structured cabling systems.
The challenge for network engineers, IT infrastructure planners, and commercial contractors lies in understanding where each technology performs best. By comparing signal handling, bandwidth capabilities, and application requirements, it becomes much easier to determine when CATV infrastructure makes sense and when Ethernet becomes the preferred solution.
What CATV Infrastructure Is and Where It Lives in Commercial Buildings
CATV, short for Community Antenna Television, refers to a coaxial-based signal distribution system designed to transport radio frequency (RF)signals throughout a facility. Unlike a structured data network, CATV infrastructure focuses on delivering broadcast content from a central source to multiple viewing locations.
Traditional CATV systems use 75-ohm coaxial cable to carry television programming, cable services, satellite feeds, and off-air antenna signals. Rather than facilitating device-to-device communication, the system distributes content from a headend location to connected endpoints across a building.
Many commercial environments continue to rely on CATV networks because they provide an efficient method for distributing broadcast video. Common examples include:
Hospitality properties with guest room television systems
Healthcare facilities providing patient entertainment channels
Educational campuses distributing informational programming
Multi-tenant commercial buildings offering shared television services
One of the defining characteristics of CATV infrastructure is its broadcast-style architecture. Signals typically flow from the source toward receiving devices in a largely one-way direction. While modern cable systems may support limited return-path communication, CATV remains fundamentally different from an IP network that supports continuous bidirectional traffic between connected devices.
Understanding this distinction provides the foundation for evaluating how CATV compares with Ethernet-based structured cabling.
How Ethernet Structured Cabling Differs in Signal and Function
Ethernet structured cabling serves an entirely different role within commercial facilities. Instead of transporting RF broadcast signals, Ethernet uses balanced twisted-pair copper cabling to carry digital data between devices, switches, servers, wireless access points, and network-connected systems.
Modern Ethernet infrastructure supports a wide range of applications, including:
Enterprise data networking
Voice over IP (VoIP)
IP video surveillance
Wireless access point backhaul
Building automation systems
Power over Ethernet (PoE)devices
Two of the most common cable categories found in commercial environments today are Cat6 cables and Cat6a cabling.
Cat6 remains a popular choice because it supports Gigabit Ethernet performance over the full standard channel distance of 100 meters and operates at bandwidth frequencies up to 250 MHz. For many commercial access-layer applications, Cat6 delivers the performance needed for day-to-day network operations.
Cat6a expands those capabilities significantly. It supports 10 Gigabit Ethernet across the full 100-meter channel and operates at frequencies up to 500 MHz. The category also offers improved protection against alien crosstalk, making it particularly valuable in high-density environments where large bundles of network cable run together.
Both categories share the same industry-recognized maximum Ethernet cable length of 100 meters (328 feet) for a complete channel. That standard remains a critical planning consideration when evaluating network performance and cable selection.
Unlike CATV infrastructure, Ethernet networks support continuous two-way communication, allowing devices to send and receive data simultaneously. This capability makes Ethernet the foundation of modern commercial networking.
Cat6 vs 6a: Choosing the Right Cable for Commercial Ethernet Runs
The Cat6 vs 6a discussion frequently arises in commercial network planning, and for good reason. Both cable categories support Ethernet communications, but each serves different performance requirements.
Cat6 is often the practical choice when network traffic primarily consists of standard Gigabit Ethernet traffic. Facilities with moderate bandwidth demands, shorter cable runs, and typical PoE deployments can often achieve excellent results with Cat6 infrastructure.
Cat6a becomes more attractive when performance requirements increase. Organizations frequently select Cat6a when:
● Supporting full 10 Gigabit Ethernet speeds
● Operating near the standard maximum Ethernet cable length
● Deploying high-density cable pathways
● Running high-power PoE applications under IEEE 802.3bt
● Managing environments with elevated bandwidth demands
For organizations seeking a deeper technical breakdown of category performance, bandwidth capabilities, and distance considerations, the article on comparing Cat6, Cat6a, and Cat7 cables provides additional context.
Ultimately, the selection process should focus on application requirements rather than specifications alone. Matching cable capabilities to actual network demands typically produces the best long-term results.
Ethernet Cable Color Code Standards in Commercial Projects
The topic of Ethernet cable color code standards often comes up in structured cabling discussions. While cable color does not affect network performance, it plays an important role in cable administration and network organization.
TIA-606 guides structured cabling administration, including identification and labeling practices. Many organizations adopt color-coding schemes that help technicians quickly identify cable functions throughout a facility.
Common examples include:
Blue for horizontal data cabling
Yellow for PoE devices or security systems
Orange for fiber-related pathways
Green for network equipment connections
Individual organizations frequently develop their own standards, so color assignments can vary from project to project. The key objective remains consistency.
A well-defined Ethernet cable color code strategy simplifies troubleshooting, supports documentation efforts, and makes adds, moves, and changes easier to manage over time. Many structured cabling projects also incorporate different jacket colors and stripe combinations to improve visual identification throughout large installations.
Where CATV and Ethernet Each Belong in a Commercial Network
The most important takeaway in the CATV versus Ethernet discussion is that these technologies rarely compete directly. Instead, they solve different communications challenges within the same facility.

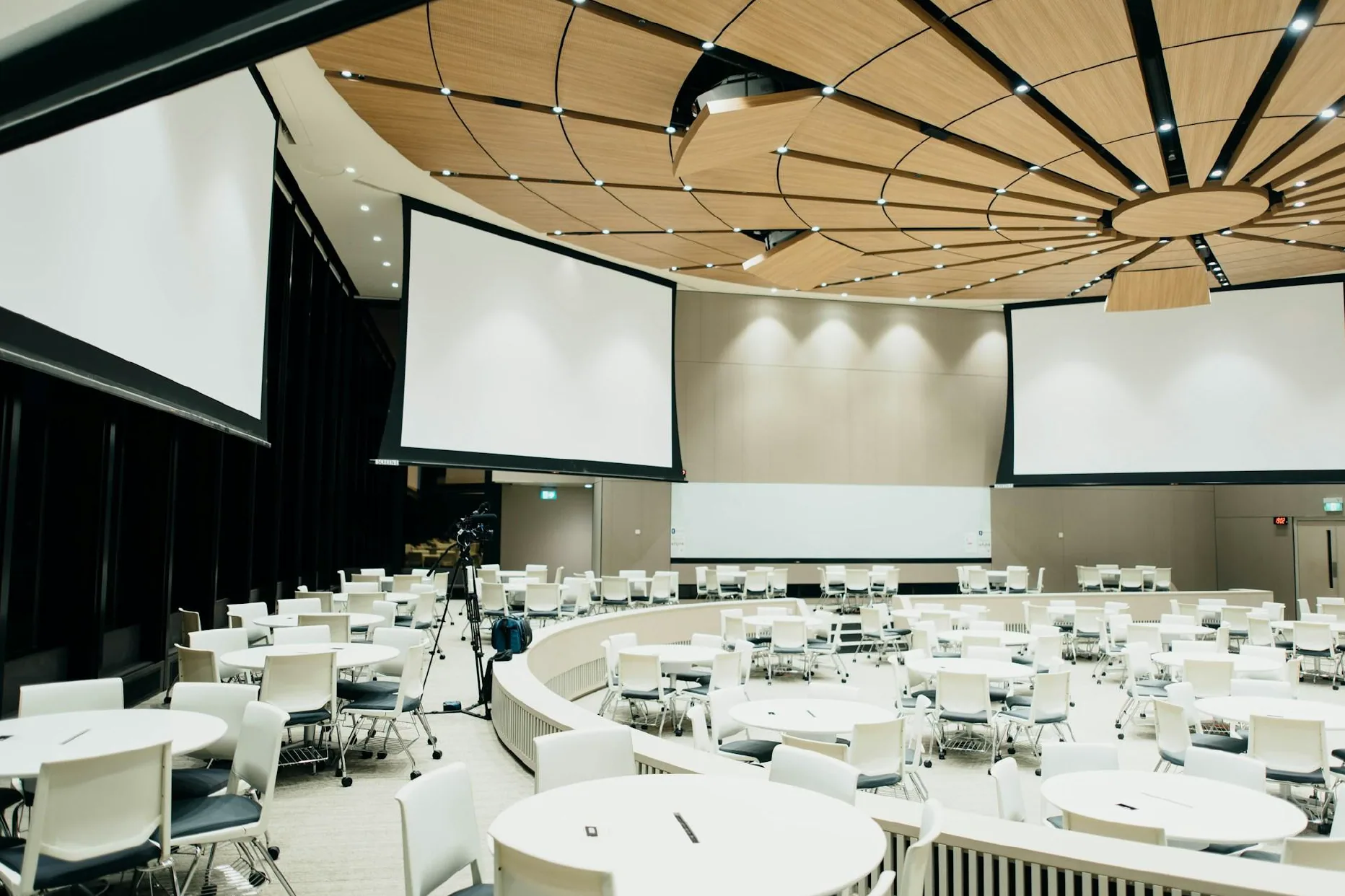

CATV infrastructure remains an excellent solution when the primary objective is to distribute broadcast video content to fixed viewing locations. Examples include guest room televisions, patient entertainment systems, training rooms, conference centers, and digital display networks that receive content from a centralized headend.
In these situations, CATV offers several advantages:
Efficient distribution of broadcast programming
Reliable RF signal delivery across long distances
Support for large numbers of receiving endpoints
Simplified content distribution from a centralized source
However, CATV becomes less suitable when applications require active communication between devices.
That is where Ethernet structured cabling takes over.
Ethernet serves as the foundation for applications requiring bidirectional data transmission. Modern commercial facilities depend on Ethernet for:
● Business network connectivity
● Voice communications
● Video surveillance systems
● Wireless networking infrastructure
● Building automation controls
● Access control systems
● Power over Ethernet devices
Ethernet also supports network management and addressable endpoints. Each connected device can communicate independently, exchange information with other systems, and participate in broader IP-based services.
Another major advantage lies in convergence. A single structured cabling infrastructure can support multiple services simultaneously, including voice, data, video, security, and automation applications.
As a result, many commercial facilities deploy both technologies. CATV handles the distribution of broadcast entertainment, where RF delivery remains the most effective solution. Ethernet supports virtually every application connected to the organization's IP network.
The decision, therefore, should not be viewed as choosing CATV instead of Ethernet. The more accurate approach involves identifying the application's requirements and selecting the infrastructure that aligns with those needs. When specified appropriately, both systems can coexist and contribute to overall network performance.
Understanding the Right Fit for Commercial Infrastructure
CATV and Ethernet each occupy an important place in modern commercial communications systems. CATV excels at distributing broadcast video and RF-based content to large numbers of endpoints, while Ethernet structured cabling supports the bidirectional data communications that power today's connected facilities.
Choosing the correct infrastructure starts with understanding the application's goals, bandwidth requirements, and communication model. In many cases, the strongest commercial networks rely on both technologies working together rather than treating them as competing solutions.
