Belden 88770 Equal: WCW FEP-18-03-OAS Cable

Petroleum contractors, fuel system integrators, and procurement teams often begin sourcing cable by using part numbers. That approach reflects how specification-driven these environments are. A Belden 88770 Equal is not evaluated solely by general description. It must match construction across conductor size, conductor count, insulation type, shielding method, jacket composition, voltage rating, temperature range, and plenum classification.

FEP-18-03-OAS enters that conversation as a direct construction match for petroleum cable applications. It is an 18 AWG, 3-conductor, shielded plenum cable built with FEP insulation and a gas and vapor-tight jacket. Look first at specification alignment, then at how that construction supports real-world fuel system performance. Detailed specifications can be reviewed on the FEP-18-03-OAS product page, but the value becomes clearer when tied to petroleum environments and circuit behavior.

The Spec Match: FEP-18-03-OAS as a Belden 88770 Equal

Specification matching drives purchasing decisions in petroleum infrastructure. When teams search for a Belden 88770 Equal, they are verifying whether a cable meets an established performance profile.

FEP-18-03-OAS aligns with that profile across all critical construction elements:

Specification

FEP-18-03-OAS

• Conductor Size

• 18 AWG

• Conductor Count

• 3-conductor

• Stranding

• 19-strand annealed tinned copper

• Insulation

• FEP

• Color Code

• Black / Red / White

• Shield

• Aluminum/Mylar tape, 100% coverage

• Drain Wire

• 20 AWG stranded tinned copper

• Jacket

• Gas/vapor-tight FEP

• Plenum Rating

• CMP c(UL)us

• Voltage Rating

• 300V

• Temperature Rating

• -80°C to 200°C

• Origin

• Made in USA




Additional electrical characteristics support its use in data and control circuits. Capacitance is rated at 51 pF per foot, conductor to conductor, and 97 pF per foot, conductor to shield. Impedance is 28 ohms, with a velocity of propagation of 71%. DC resistance measures 6.1 ohms per 1000 feet at 20°C.

These details define more than a product. They define a petroleum cable that can be evaluated directly against specification requirements rather than general performance claims.

Why This Construction Matters in Petroleum Environments

Petroleum environments combine multiple stress factors. Fuel vapor, oil exposure, moisture, temperature variation, and electrically active equipment all interact with the cable. Each of these conditions can degrade materials that are not designed for that environment.

FEP insulation and jacketing address those conditions at the material level. FEP is a fluoropolymer known for chemical resistance, thermal stability, and low dielectric loss. In petroleum cable applications, that combination supports both durability and signal performance.

The gas and vapor-tight jacket plays a central role. Fuel system environments expose cables to vapor that can penetrate or degrade standard cable jackets. A gas-resistant FEP jacket creates a barrier that limits the interaction. The product marking specifically identifies oil resistance, sunlight resistance, gas resistance, and suitability for wet locations. Those characteristics define it as a fuel-resistant wire rather than a general-purpose cable.

Tinned copper conductors also contribute to durability. In environments where moisture and vapor are present, tinning helps reduce oxidation and corrosion on conductor surfaces. That helps maintain electrical consistency over time.

Shielding supports another layer of performance. Petroleum environments often include pumps, motors, control electronics, and power circuits. These create electrical noise that can interfere with low-voltage communication pathways. The aluminum/Mylar shield with full coverage helps maintain signal stability across those conditions.

Where FEP-18-03-OAS Is Used in Petroleum Applications

FEP-18-03-OAS fits commercial petroleum environments where 18 AWG, 3-conductor shielded cable is specified. Its construction aligns with applications that require both electrical performance and resistance to fuel-related exposure.

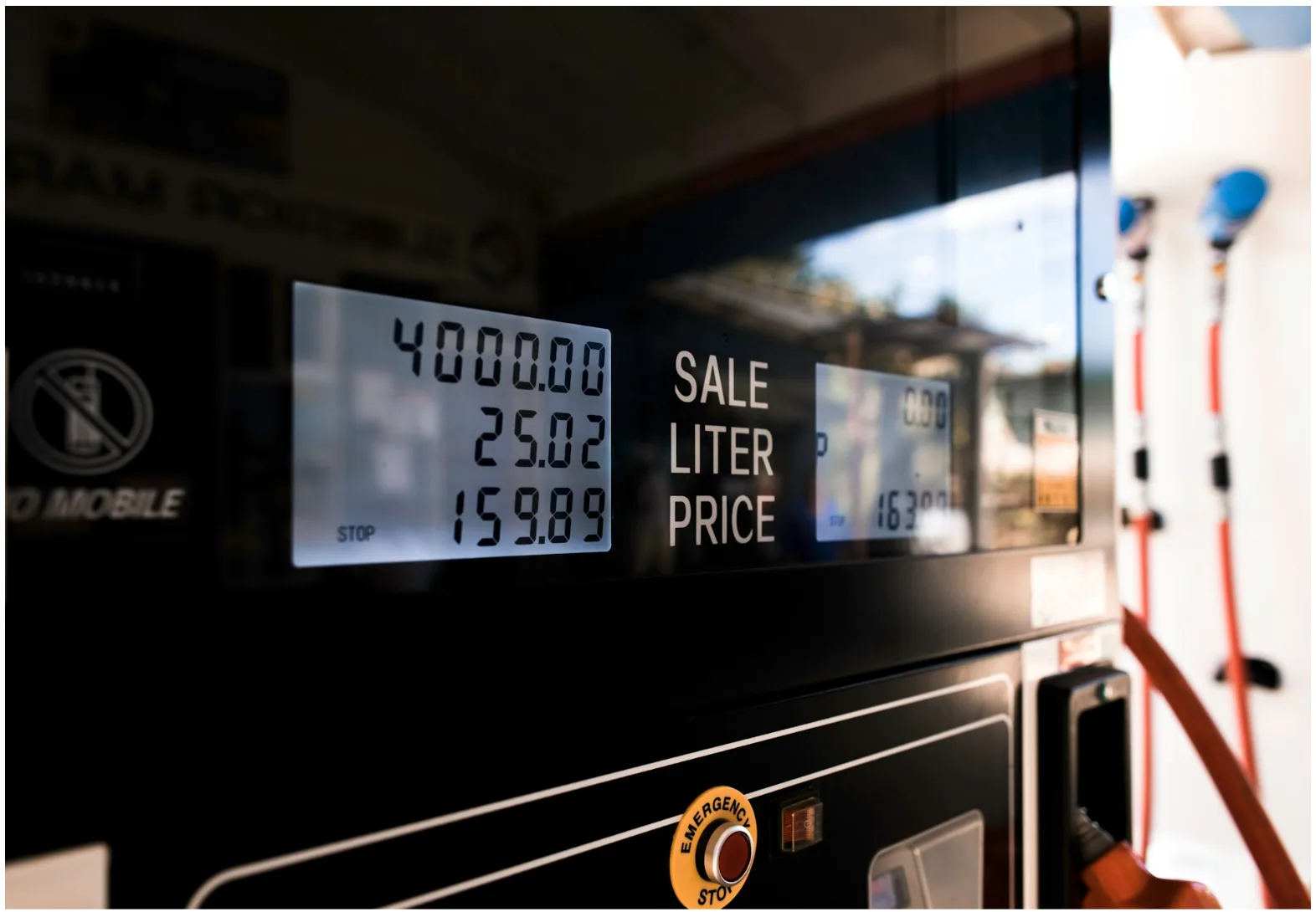

Fuel Dispenser Wiring Environments

Fuel dispensers are among the most demanding applications for petroleum cable. These systems combine electronic controls, fuel delivery components, and communication pathways in a confined environment.

Cable in this space operates near fuel vapor, oil residue, and temperature changes driven by equipment cycles. The FEP jacket and insulation help resist these exposures, while shielding supports consistent signal behavior. Gas-and-oil-resistant cables are often specified here because the environment continuously stresses the cable materials.

CRIND System Wiring in Gas Pumps

CRIND stands for "Card Reader in Dispenser." These systems connect payment processing to dispenser hardware, creating communication pathways that must remain stable in a fuel environment.

CRIND system wiring in gas pumps often uses shielded multi-conductor cable to support defined circuit paths. A 3-conductor configuration provides a clear structure for signal routing. The black, red, and white color coding supports conductor identification within those circuits.

Shielding plays a key role in this application. Payment and control signals can be sensitive to interference. The aluminum/Mylar shield and drain wire help maintain signal consistency in an environment that includes electrical noise from nearby equipment.

Petroleum Control and Monitoring Environments

Petroleum facilities rely on control and monitoring systems for tank management, dispenser operation, and system diagnostics. These systems use low-voltage circuits that must operate reliably despite environmental exposure.

In these applications, cable construction determines long-term performance. FEP insulation resists chemical exposure. The gas and vapor-tight jacket protects the cable core. Shielding supports signal integrity. Together, these elements define the durability of oil and gas industry cables in control and monitoring environments.

For a broader view of petroleum cable types and related specifications, the Petroleum Resource Center provides additional context.

FEP Jacket Performance for Gas, Oil, and Vapor Exposure

Jacket performance is one of the most important factors in petroleum cable design. The outer layer of the cable is directly exposed to environmental conditions. If the jacket degrades, the internal components become vulnerable.

FEP jackets provide strong resistance to fuel, oil, and vapor exposure. The gas and vapor-tight construction limits the entry of contaminants that could affect insulation or conductor performance. This is particularly relevant in fuel dispenser environments where vapor exposure is continuous.

The jacket also carries ratings that define its suitability. Oil resistance indicates compatibility with petroleum exposure. Sunlight resistance supports performance in areas exposed to light. Gas resistance and wet-location suitability expand the range of conditions the cable can handle.

Temperature performance is another key factor. With a range from -80°C to 200°C, the cable supports operation across a wide range of thermal conditions. That range reflects the demands of petroleum environments, where temperature can vary significantly depending on equipment and location.

Shielding and Signal Integrity in Fuel System Circuits

Signal integrity is critical in petroleum cable applications because many circuits perform communication and control functions. Interference from nearby electrical equipment can disrupt these signals if the cable is not properly shielded.

The aluminum/Mylar tape provides full coverage around the conductors. This creates a barrier that reduces the impact of external electrical noise. The stranded tinned copper drain wire supports continuity of that shield, allowing it to function effectively along the length of the cable.

In CRIND systems and dispenser communication circuits, this shielding helps maintain stable signal behavior. It does not eliminate all interference, but it reduces the impact enough to support reliable operation in complex environments.

Shielding also contributes to the overall durability of oil-and-gas industry cables. Durability includes electrical performance and physical resistance. A cable that maintains signal integrity under electrical stress is performing its role within the system.

EMV Upgrade Environments and Petroleum Cable Requirements

Fuel station infrastructure has evolved with EMV-related upgrades. These changes have increased the focus on cable selection within dispenser systems and related control environments.

EMV upgrades involve payment systems, CRIND hardware, and communication pathways that operate within fuel dispenser environments. The cable supporting these systems must align with both electrical requirements and environmental conditions.

Petroleum cable construction addresses that need. Gas and vapor resistance, shielding, and FEP insulation all contribute to a cable that can operate in fuel-related environments.

 For additional context on how cable requirements connect to EMV infrastructure, this article on gas station cables for EMV upgrades provides a useful reference.

Source FEP-18-03-OAS for Petroleum Specifications

FEP-18-03-OAS represents a Belden 88770 Equal defined by construction alignment. It combines 18 AWG conductors, a 3-conductor configuration, FEP insulation, full shielding, a gas and vapor-tight jacket, CMP rating, and a wide temperature range.

These characteristics support petroleum cable applications where fuel resistance, signal integrity, and environmental durability matter. A single feature does not define the cable. It is defined by how all of its components work together within the specification.

For detailed specifications and availability, the FEP-18-03-OAS product page provides a direct reference. For project-specific questions or procurement support, the contact page offers a path to continue the conversation.

FEP-18-03-OAS is a spec-matched Belden 88770 equivalent for petroleum cable applications, where construction details determine performance. Its 18 AWG, 3-conductor design, FEP insulation, full shielding, and gas- and vapor-tight jacket meet the requirements of fuel dispenser, CRIND, and petroleum control environments.

In petroleum infrastructure, cable selection is a specification decision tied to environment, circuit behavior, and long-term reliability. When the construction aligns with those requirements, the cable becomes a consistent part of the system rather than a variable within it.
