RJ45 Connector Types & Wiring for Commercial Networks

An RJ45 connector looks like a small component, but in commercial and industrial network builds, it becomes a real specification decision. The connector affects how a cable interfaces with patch panels, data racks, network drops, switches, access points, cameras, controllers, and other connected equipment. It also has to match the cable category, shielding approach, and bandwidth expectation behind the network design. This breaks down RJ45 connector types, wiring standards, and the main factors that help buyers match connectors to Cat5e, Cat6, and Cat6a cable runs.

What Is an RJ45 Connector?

The RJ45 connector is the common modular interface used with twisted-pair Ethernet cable in structured cabling systems. Technically, the physical connector style is often described as 8P8C, meaning eight positions and eight contacts. In everyday network language, RJ45 has become the familiar term for the plug or jack used to connect copper Ethernet cabling.

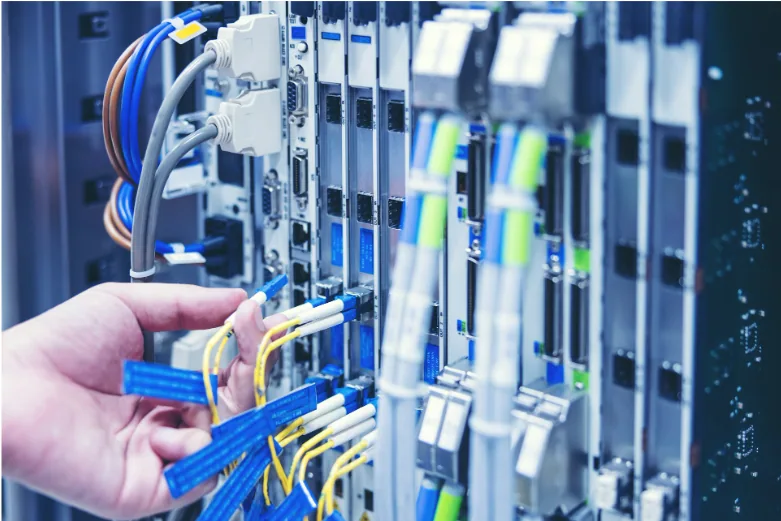

In commercial builds, RJ45 connectors are found on patch panels, network racks, device drops, equipment cords, and structured cabling pathways. Their job is to maintain the electrical connection between the cable pairs and the network hardware. This makes the connector part of the channel rather than just an accessory at the end of an RJ45 cable.

RJ45 Connector Types: Shielded vs. Unshielded

One of the first specification decisions involves shielded and unshielded connector construction. An unshielded RJ45 connector supports UTP cable, where the twisted pairs manage noise without an overall cable shield. This is common in many standard commercial office, data room, and enterprise network environments where electromagnetic interference stays within normal design expectations.

A shielded RJ45 connector supports shielded cable constructions, such as FTP, STP, F/UTP, or S/FTP. In those cable types, the shield helps reduce electromagnetic interference from nearby motors, equipment, power systems, lighting controls, machinery, or dense cable pathways. The connector needs a compatible, shielded design so the shielded channel can remain continuous.

This is a sourcing and design decision. Procurement and design teams typically consider the project environment, cable type, equipment density, and performance requirements when choosing between shielded and unshielded connectors. The RJ45 connectors product page provides a useful reference for connector options for structured cabling projects.

Keystone Jacks vs. Field-Term Connectors

RJ45 connector selection also depends on the form factor. Keystone jacks are modular connectors designed to be mounted in patch panels, wall plates, surface boxes, or other structured cabling hardware. They support organized rack and panel architecture in commercial network builds. For a design team, keystone jacks are often part of the permanent cabling side of the system.

Field-term connectors serve a different role. They terminate directly onto a cable end, creating a plug-style connection for equipment cords, custom-length cable assemblies, and direct device links. This format may appear when the project specification calls for a cable end to connect directly to equipment rather than land in a jack or panel.

The difference is not about which type is universally better. It is about architecture. A patch panel and rack design may call for keystone jacks. A device connection or custom cordset may call for a field-terminable plug. The project specification should define the connector type that matches the network layout.

RJ45 Wiring Standards and Pinout: T568A vs. T568B

RJ45 wiring standards help keep commercial networks consistent. The two common pinout standards are T568A and T568B. Both organize the same four twisted pairs across the eight connector positions, but they place the green and orange pairs in different positions. Standardization matters because mismatched pin order can create confusion across patch panels, network drops, and equipment connections.

At a reference level, an RJ45 pinout identifies which conductor color lands on each numbered position. A simple RJ45 wiring diagram usually shows the connector pins from 1 through 8 and labels the color sequence. For T568A, the sequence is white-green, green, white-orange, blue, white-blue, orange, white-brown, brown. For T568B, the sequence is white-orange, orange, white-green, blue, white-blue, green, white-brown, brown.

This is not a step-by-step termination guide. It is a specification reference. The main point is consistency. A commercial network build should clearly define the RJ45 wiring standard so that panels, jacks, plugs, and documentation follow the same logic across the project.

Matching RJ45 Connectors to Cat5e, Cat6, and Cat6a Cable Runs

Connector specification should track the cable category. Cat5e, Cat6, and Cat6a cables have different bandwidth and performance requirements, so the connector needs to support the channel category. A Cat6a run paired with a lower-category connector can limit the channel performance, even when the cable itself has a higher rating.

Cat5e often supports standard enterprise network drops where one gigabit performance meets the requirement. Cat6 supports higher bandwidth and stronger performance margins for many commercial network applications. Cat6a supports 10-gigabit Ethernet across the standard 100-meter channel when the full channel meets Cat6a requirements. In data centers, distribution facilities, enterprise office backbones, manufacturing floors, and high-density network rooms, that category alignment matters.

RJ45 wiring also interacts with shielding. A shielded Cat6a cable typically needs a shielded connector that matches the channel strategy. An unshielded Cat6 cable typically pairs with an unshielded connector. For broader category cable context, the Category Cable Resource Center offers a helpful overview of cable types and performance considerations.

How Connector Construction Affects Network Performance

The connector may look simple, but its construction affects how well the channel preserves signal quality. Ethernet performance depends on pair geometry, impedance consistency, crosstalk control, and contact stability. A connector that does not match the cable type can introduce unwanted signal loss or noise at the cable-to-equipment interface.

For Cat6 and Cat6a networks, connector quality becomes more important because higher frequencies leave less room for inconsistency. Cat6a especially depends on stronger control of alien crosstalk and signal balance across the full channel. The connector has to support those goals through category rating, pair separation, shielding compatibility when needed, and reliable contact design.

Network reliability also depends on repeatability. Large commercial builds may involve many patch panel ports, network drops, and equipment connections. If connector specifications vary across the project, the network can become harder to document and support. This is where a small component becomes a large planning detail. Connector selection supports consistency across the entire structured cabling system.

How to Choose the Right RJ45 Connector for Your Project

A useful RJ45 connector sourcing checklist starts with the environment. If the network runs through an electrically busy area, a shielded connector may fit the project specification. If the environment has standard commercial network conditions, an unshielded connector may match the cable and performance needs. The next decision is the mounting method. Keystone jacks support patch panels and structured cabling hardware, while field-term connectors support direct plug-style cable ends.

Cable category comes next. Match the connector to Cat5e, Cat6, or Cat6a requirements to ensure the channel maintains its rated performance. Then review bandwidth needs, rack architecture, patching approach, and equipment interface requirements. A commercial network that supports access points, cameras, switches, controls, or dense endpoint groups may need a connector specification that meets both performance and documentation requirements.

The best answer is not only connector type. It is the connector type, cable category, shielding strategy, mounting format, and network bandwidth goal.

Common Specification Issues to Watch

Commercial network specifications can run into problems when the connector language is overly broad. A request for an RJ45 connector may not say whether the project needs shielded or unshielded construction. It may omit Cat5e, Cat6, or Cat6a category alignment. It may call for plugs when the rack design actually depends on keystone jacks and patch panels. It may reference an RJ45 wiring diagram without stating whether the project standard uses T568A or T568B.

Clear documentation reduces those gaps. A stronger specification names the connector category, shielding type, form factor, wiring standard, and application context. That gives procurement teams a more accurate part requirement and gives system designers a cleaner path for network documentation.

RJ45 connectors sit at the intersection of cable performance and network hardware. When the connector specification matches the RJ45 cable, wiring standard, shielding strategy, and rack or panel architecture, the network gains a more consistent physical layer.

RJ45 connector selection should not feel like an afterthought in commercial and industrial network projects. The connector links the cable to the structured cabling system, and that connection affects bandwidth, reliability, documentation, and long-term serviceability. Shielded versus unshielded construction, keystone versus field-term format, T568A versus T568B RJ45 wiring, and Cat5e, Cat6, or Cat6a category alignment all matter. For spec support or a quote tied to RJ45 connectors and category cable, use the contact page to connect with the team.
